Stainless Steel Circle

Table of Content

  1. Stainless Steel Circle Specification

  2. Stainless Steel Circle Equivalent Grade

  3. Stainless Steel Circle Size Chart

  4. HS Code of Stainless Steel Circle Ring

  5. SS 316 Round Disc Equivalent Material

  6. Stainless Steel Circle Useful Information

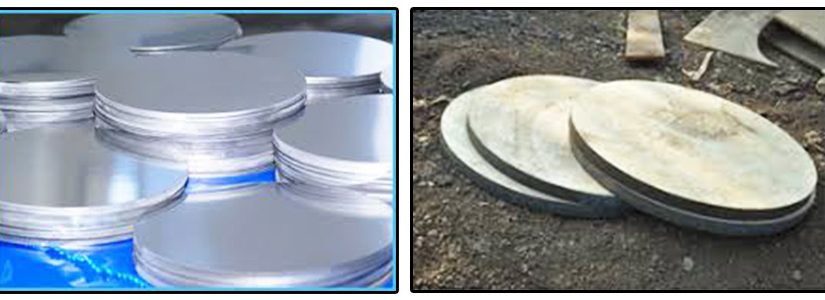

stainless steel circle

What is a SS Circle?

SS circles are known for their great resistance to corrosion and oxidation in various applications. SS Circles are available in a number of sizes from 1 mm to 100 mm in thickness and thickness from 0.1 mm to 2000 mm in diameter. Stainless steel circles are made from an alloy containing very few additions of carbon, manganese, silicon. These Stainless Steel circles offer much greater strength when operating at elevated temperatures, so they are often used in a wide range of industrial and high-pressure environments.

Tips to find a trustable stainless steel Circle supplier in India

To identify an authentic ss circle supplier in India, you should consider these tips:

  • Look for Stainless Steel Circle providers that have actually been in existence for some time in order to maximize the level of expertise as an outcome. Also, make sure you have looked at their certifications, to confirm that they have met the minimal requirements for the level of quality.
  • Ask for the stock information of the SS circle which is applicable to your situation. They ought to have enough stock among their appliances to ensure that you can acquire the circles you require, without delay.
  • Read about the firm online and read past client testimonials. Try to find out whether the business is transparent in their dealings with clients. Look at their client servicing both online and offline.
CUTTING

Industrial Application of SS Circle

Stainless Steel Circles are highly versatile and have excellent resistance to heat and corrosion properties. As a result, it can be used across a wide range of industries, such as:

SS Circle Specification

Specification of SS Circle
ASTM A240 / SA240
Dimension
ASTM, API & ASME
Standards
AISI, GB, ASTM, EN, JIS, DIN Manufacturer and supplier
Thickness of SS Circle
1 MM - 100 MM
Diameter of Stainless Steel Circle
Upto 2000MM
Circle Diameter
3 inch Diameter up to 38 inch Diameter 1500 lbs maximum
SS Circle form
Cold Rolled, Forged Steels, Small Flat, Hot Rolled Circle, Proof Machined, Polished Unique, Cnc Finish, Perforated, and Industrial.

SS Circle Equivalent Grade

STANDARD WERKSTOFF NR. UNS
SS 304
1.4301
S30400
SS 304L
1.4306 / 1.4307
S30403
SS 304H
1.4301
S30409
SS 310
1.4841
S31000
SS 310S
1.4845
S31008
SS 310H
-
S31009
SS 316
1.4401 / 1.4436
S31600
SS 316L
1.4404 / 1.4435
S31603
SS 316H
1.4401
S31609
SS 316Ti
1.4571
S31635
SS 317
1.4449
S31700
SS 317L
1.4438
S31703
SS 321
1.4541
S32100
SS 321H
1.4878
S32109
SS 347
1.4550
S34700
SS 347H
1.4961
S34709
SS 904L
1.4539
N08904

Countries We Supply Stainless Steel Circle To

Steelco Metal & Alloys supply and distribute Stainless Steel products to countries like

US United States

Europe Europe

Middle East Middle East

Africa Africa

and more…

SS Circle Size chart

Sizes in Inch 18 Gauge 19 Gauge 20 Gauge 22 Gauge 24 Gauge 26 Gauge
.4.5
.0-107
0-085
0-080
0-062
0.049
0-040
5.5
0-146
0-119
0-109
0-085
0-066
0-054
9
0-388
0-330
0-301
0-230
0-178
0-145
6
0-172
0-136
0-130
0-100
0-079
0-064
6.5
0-200
0-153
0-150
0-128
0-093
0-074
5
0-120
0-095
0-090
0-070
0-055
0-045
7
0-235
0-190
0-176
0-136
0-107
0-088
7.5
0.270
0.212
0.201
0-157
0-123
0-100
8
0-307
0-240
0-230
0-180
0-140
0-115
8.5
0-347
0-270
0-262
0-202
0-156
0-130
15
1-080
0-860
0-808
0-650
0-495
0-405
9.5
0-472
0-342
0-324
0-252
0-198
0-162
10
0-480
0-380
0-360
0-280
0-220
0-180
11
0-580
0-450
0-435
0-338
0-266
0-218
12
0-690
0-540
0-518
0-403
0-318
0-253
13
0-811
0-640
0-508
0-608
0-371
0-304
14
0-940
0-750
0-708
0-558
0-430
0-352
20
1-920
1-400
1-340
1-120
0-880
0-785
16
1-228
0-960
0-921
0-736
0-563
0-460
17
1-382
1-080
0-940
0-809
0-635
0-560
18
1-595
1-200
1-116
0-907
0-712
0-683
19
1-732
1-350
1-300
1-010
0-794
0-750

HS Code of SS Circle Ring

Hs Code Country Product
72191190
BAHRAIN, MALAYSIA, UGANDA, THAILAND, SAUDI ARABIA
COLD ROLLED STAINLESS STEEL CIRCLE

SS 316 Round Disc Equivalent Material

STANDARD WERKSTOFF NR. UNS
SS 304
1.4301
S30400
SS 304L
1.4306 / 1.4307
S30403
SS 304H
1.4301
S30409
SS 310
1.4841
S31000
SS 310S
1.4845
S31008
SS 310H
-
S31009
SS 316
1.4401 / 1.4436
S31600
SS 316L
1.4404 / 1.4435
S31603
SS 316H
1.4401
S31609
SS 316Ti
1.4571
S31635
SS 317
1.4449
S31700
SS 317L
1.4438
S31703
SS 321
1.4541
S32100
SS 321H
1.4878
S32109
SS 347
1.4550
S34700
SS 347H
1.4961
S34709
SS 904L
1.4539
N08904

SS Circle Useful Information

Chemical Composition

Grade C Mn Si P S Cr Mo Ni
SS 304
0.08 max
2 max
0.75 max
0.045 max
0.030 max
18 – 20
8 – 11
SS 304L
0.035 max
2.0 max
1.0 max
0.045 max
0.03 max
18 – 20
8 – 13
SS 316
0.08 max
2.0 max
1.0 max
0.045 max
0.030 max
16.00 – 18.00
2.00 – 3.00
11.00 – 14.00
SS 316L
0.035 max
2.0 max
1.0 max
0.045 max
1.0 max
16.00 – 18.00
16.00 – 18.00
10.00 – 14.00

Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max
Rockwell B (HR B) max
304
515
205
40
92
201

Benefits of Stainless Steel Circle

Strength

A stainless steel Circle is very strong, tough, and resistant to cold, heat, and erosion. It does not break or crack when exposed to extreme heat and cold.

Versatility

Steel makers can blend this alloy into a precisely measured proportion of components and use this steel alloy to give sheets that are elastic and have unique properties. The thickness of the sheets varies, sometimes reaching a quarter of an inch.

Durability

A stainless steel that’s lightweight doesn’t buckle easily and is practically unreactive, which makes it one of the hardest substances on the market. It can handle extreme temperatures, hotness, and humidity.

Competitive Advantage of Steelco Metal & Alloys

Company Services
We enhance our industry operations by relieving you of the worries associated with freight forwarding.

An integrated approach to providing engineering services allows our clients to benefit from the commercial and logistical advantages.

We are one of the Nations largest automotive parts recyclers and a widely recognized leader utilizing advanced computerized techniques.
We’ll work with you on your project, large or small. Together we’ll fine-tune your new construction, remodeling or renovation plans.

FAQ

SS circles are known for their great resistance to corrosion and oxidation in various applications. SS Circles are available in a number of sizes from 1 mm to 100 mm in thickness and thickness from 0.1 mm to 2000 mm in diameter.

SS Circles are in different specifications like : ASTM A240 / ASME SA240. And it is available in grades SS304 to SS 904L. [know more]

The stainless steel circle is electronic and resistant to corrosion. It is ideal for surgical devices, paper processing equipment, manufacturing equipment, industrial fasteners, and chemical processing machinery.

Price of stainless steel circles varies according to the thickness, size and other properties. To know more about price [click here]
